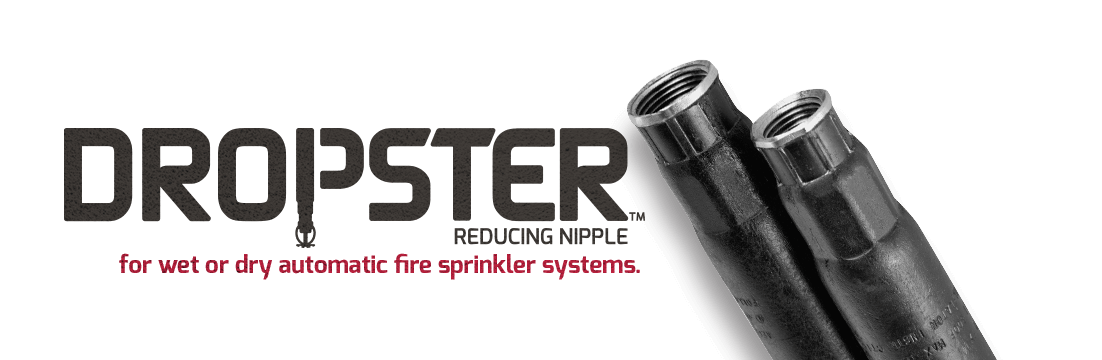

Aegis DROPSTER™
Drop Nipple
The Aegis Dropster™ Non-Adjustable Drop Nipple is a highly engineered reducing nipple made from high strength carbon steel conforming to ASTM standards. The one inch (1”) male NPT or ISO threaded or plain inlet by half inch (½”) or three quarter inch (¾”) NPT sprinkler outlet by a standard or specified fitting length eliminates threaded reducing coupling and labor make-up costs. A “double end” model with a half inch (½”) or three quarter inch (¾”) NPT sprinkler outlet on both ends for field cutting, threading, and installation is available.
Any Aegis Dropster™ model may be field cut down, threaded, and installed. Designed for use in wet or dry systems in accordance with NFPA Standards 13, 13R, & 13D, and is rated for use at a maximum pressure and temperature of 300 PSI and 300°F, respectively. UL & ULC Listed in accordance to UL 1474 5th Edition, UL213 4th Edition, UL213B Issue 5 and FM Approved in accordance to FM Class 1631. The inlet threads conform to ANSI B1.20.1 NPT or ISO 7-1. The outlet threads conform to ANSI B1.20.1 NPT or better. Each unit has been pressure tested for material integrity prior to shipment.
MADE WITH:
SPECIFICATIONS
Dropster Options
| Drop Nominal length |
40MT 1" MNPT INLET 1/2" NPT OUTLET Part # |
40MT 1" MNPT INLET 3/4" NPT OUTLET Part # |
40PE 1" PLAIN INLET 1/2" NPT OUTLET Part # |
40PE 1" PLAIN INLET 3/4" NPT OUTLET Part # |
40DE 1/2" NPT INLET 1/2" NPT OUTLET Part # |
40DE 3/4" NPT INLET 3/4" NPT OUTLET Part # |
Overall Length |
Equiv. length 40mt/pe 1/2 & 3/4 *** |
Weight Each |
BOX QTY. |
|---|---|---|---|---|---|---|---|---|---|---|
| 4" | 90401504 | 90401704 | 5" | 0.5' / 2.4' | 0.56 lbs | 45 | ||||
| 4½" | 904015045 | 904017045 | 5½" | 0.5' / 2.4' | 0.63 lbs | 42 | ||||
| 5" | 90401505 | 90401705 | 6" | 0.5' / 2.4' | 0.69 lbs | 42 | ||||
| 5½" | 904015055 | 904017055 | 6½" | 0.5' / 2.4' | 0.75 lbs | 25 | ||||
| 6" | 90401506 | 90401706 | 7" | 0.5' / 2.4' | 0.82 lbs | 25 | ||||
| 6½" | 904015065 | 904017065 | 7½" | 1.0' / 2.6' | 0.88 lbs | 25 | ||||
| 7" | 90401507 | 90401707 | 8" | 1.0' / 2.6' | 0.95 lbs | 25 | ||||
| 7½" | 904015075 | 904017075 | 8½" | 1.0' / 2.6' | 1.01 lbs | 25 | ||||
| 8" | 90401508 | 90401708 | 9" | 1.0' / 2.6' | 1.07 lbs | 25 | ||||
| 8½" | 904015085 | 904017085 | 9½" | 1.0' / 2.6' | 1.14 lbs | 25 | ||||
| 9" | 90401509 | 90401709 | 10" | 1.0' / 2.6' | 1.20 lbs | 25 | ||||
| 9½" | 904015095 | 904017095 | 10½" | 1.0' / 2.6' | 1.27 lbs | 25 | ||||
| 10" | 90401510 | 90401710 | 11" | 1.0' / 2.6' | 1.33 lbs | 25 | ||||
| 10½" | 904015105 | 904017105 | 11½" | 1.0' / 2.6' | 1.39 lbs | 25 | ||||
| 11" | 90401511 | 90401711 | 12" | 1.0' / 2.6' | 1.46 lbs | 25 | ||||
| 11½" | 904015115 | 904017115 | 12½" | 1.0' / 2.6' | 1.52 lbs | 25 | ||||
| 12" | 90401512 | 90401712 | 90411512 | 90411712 | 13" | 1.0' / 2.6' | 1.59 lbs | 25 | ||
| 12½" | 904015125 | 904017125 | 13½" | 1.7' / 3.0' | 1.65 lbs | 25 | ||||
| 13" | 90401513 | 90401713 | 14" | 1.7' / 3.0' | 1.71 lbs | 25 | ||||
| 13½" | 904015135 | 904017135 | 14½" | 1.7' / 3.0' | 1.78 lbs | 25 | ||||
| 14" | 90401514 | 90401714 | 15" | 1.7' / 3.0' | 1.84 lbs | 25 | ||||
| 14½" | 904015145 | 904017145 | 15½" | 1.7' / 3.0' | 1.90 lbs | 25 | ||||
| 15" | 90401515 | 90401715 | 16" | 1.7' / 3.0' | 1.97 lbs | 25 | ||||
| 15½" | 904015155 | 904017155 | 16½" | 1.7' / 3.0' | 2.03 lbs | 25 | ||||
| 16" | 90401516 | 90401716 | 17" | 1.7' / 3.0' | 2.10 lbs | 25 | ||||
| 16½" | 904015165 | 904017165 | 17½" | 1.7' / 3.0' | 2.16 lbs | 25 | ||||
| 17" | 90401517 | 90401717 | 18" | 1.7' / 3.0' | 2.22 lbs | 25 | ||||
| 17½" | 904015175 | 904017175 | 18½" | 1.7' / 3.0' | 2.29 lbs | 25 | ||||
| 18" | 90401518 | 90401718 | 90411518 | 90411718 | 19" | 1.7' / 3.0' | 2.35 lbs | 25 | ||
| 18½" | 904015185 | 904017185 | 19½" | 2.1' / 3.4' | 2.42 lbs | 10 | ||||
| 19" | 90401519 | 90401719 | 20" | 2.1' / 3.4' | 2.48 lbs | 10 | ||||
| 19½" | 904015195 | 904017195 | 20½" | 2.1' / 3.4' | 2.54 lbs | 10 | ||||
| 20" | 90401520 | 90401720 | 21" | 2.1' / 3.4' | 2.61 lbs | 10 | ||||
| 20½" | 904015205 | 904017205 | 21½" | 2.1' / 3.4' | 2.67 lbs | 10 | ||||
| 21" | 90401521 | 90401721 | 22" | 2.1' / 3.4' | 2.74 lbs | 10 | ||||
| 21½" | 904015215 | 904017215 | 22½" | 2.1' / 3.4' | 2.80 lbs | 10 | ||||
| 22" | 90401522 | 90401722 | 23" | 2.1' / 3.4' | 2.86 lbs | 10 | ||||
| 22½" | 904015225 | 904017225 | 23½" | 2.1' / 3.4' | 2.93 lbs | 10 | ||||
| 23" | 90401523 | 90401723 | 24" | 2.1' / 3.4' | 2.99 lbs | 10 | ||||
| 23½" | 904015235 | 904017235 | 24½" | 2.1' / 3.4' | 3.05 lbs | 10 | ||||
| 24" | 90401524 | 90401724 | 90411524 | 90411724 | 90421524 | 90421724 | 25" | 2.1' / 3.4' | 3.12 lbs | 10 |
| 30" | 90401530 | 90401730 | 90411530 | 90411730 | 90421530 | 90421730 | 31" | 2.1' / 3.8' | 3.89 lbs | 10 |
| 36" | 90401536 | 90401736 | 90411736 | 90411736 | 90421536** | 90421736** | 37" / 36"** | 3.9' / 4.4' | 4.65 lbs | 10 |
**Overall Length for 36" Model DE is 36".
*** Approximate friction loss expressed in equivalent lengths of straight 1” Sch 40 pipe in feet, where C=120.
